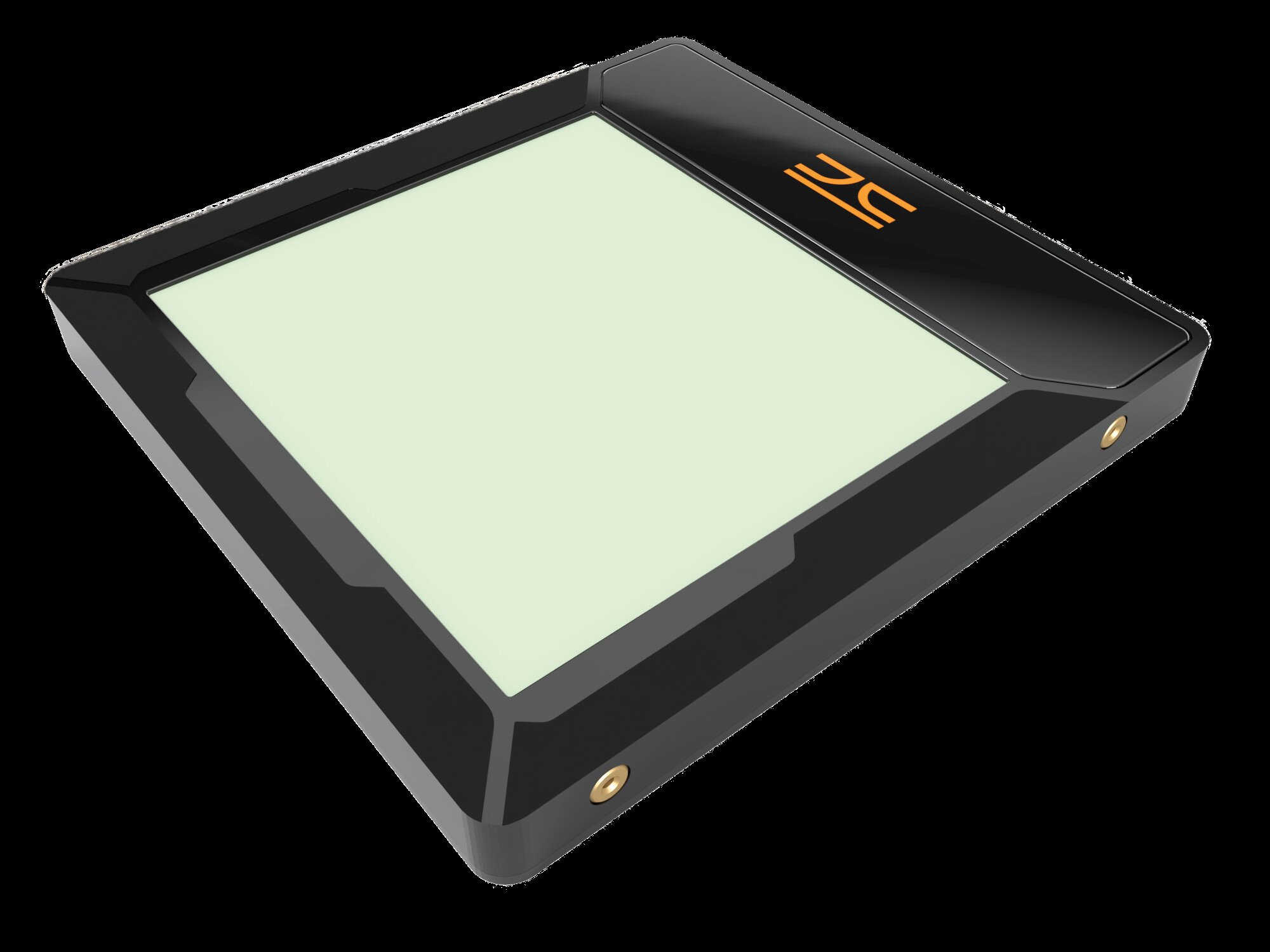

QUATTRO Compact device scans ID cards and tenprint

– Supported by both Windows and AndroidTM, QUATTRO Compact is perfectly suited for the integration into portable or mobile acquisition systems.

– Capture modes Flat (4/2/1 fingers), rolled fingers, documents and barcodes in ID1 format

– Image resolution / format 500 ppi / 3.2 inch x 3.0 inch, FAP 60

– Image quality certification FBI EBTS Appendix F, ID Flats, Tenprint and Mobile ID FAP 60, BSI TR-03121

– Ingress protection IP65

– Infection prevention** Antimicrobial coating (AMC) tested for abrasion and washability

– Scratch resistance Glass protection layer against scratches tested for hardness (DIN EN ISO 6507-1:2018-4:2018) and for abrasion (DIN 55654:2015-08)

– Operating temperature 14 °F – 131 °F (-10 °C – 55 °C)

– Dimensions (W x H x D) 4.41 inch x 4.65 inch x 0.46 inch (112 mm x 118,4 mm x 11,6 mm)

– Weight 0.29 lbs (133 g)

– Scanner interface USB 2.0, USB C to USB A

– Power supply Through the USB 2.0 interface (5 V @ 500 mA)

– Software development kit TOUCHLAB SDK
